Moose body parts.

To order spare parts, first define the exact Moose model by checking the silver label at the bottom of the device or the label on your Moose box. For technical procedures or how to install, log in to your dealer account on help.perfectmoose.com. No dealer account? Let us know on help@perfectmoose.com.

> Click to consult the exploded views of (Epic) Greg | Jack.

> Click to consult the pdf spare parts list for (Epic) Greg | Jack.

Prices you see are your dealer prices. Repairs are meant to be executed by qualified technicians and trained staff only.

buy smart steamers  buy smart pitchers  see all products

230V trafo-J

230V trafo-J

Product number: 12213

€97.98*
230V ring transformer + connecting cables towards power supply (type LRS), power inlet and motherboard.Attention: only for 230V machines. Needed per device: 1 piece
Anti-vacuum + over pressure valve - 8mm pushfit

Anti-vacuum + over pressure valve - 8mm pushfit

Product number: 12900

€51.58*
over pressure: 2.8bar +/-0.3Needed per device: 1 piece
Blue 3/8 fitting clips for cold water (set of 10pcs)

Blue 3/8 fitting clips for cold water (set of 10pcs)

Product number: 11159

€5.94*
Blue locking clip to prevent unintentional decoupling of a hose connection. The drain hose should be fixed into the drain pipe above the water level. Needed per Jack: 4 piecesDelivered as a set of 10 pieces Blue version for cold water.
Boiler 230V 2400W 1.94L

Boiler 230V 2400W 1.94L

Product number: 12200

€318.02*
Boiler for model PMJ20, with fittings 12240 and 12522 (2 pieces) pre-mounted. Needed per device: 1 piece
Cable Boiler 230V -J

Cable Boiler 230V -J

Product number: 12216

€52.73*
This cable tree is located in the back housing and conducts 230 Volts.Needed per device: 1 piece
Cable Boiler 24V -J

Cable Boiler 24V -J

Product number: 12217

€40.77*
This cable tree is located in the back housing and conducts 24 Volts.Needed per device: 1 piece
Cable Earth Steam valve -J

Cable Earth Steam valve -J

Product number: 12225

€3.15*
This cable connects the steam valve (ref 11895) to the earthing faston. Needed per device: 1 piece

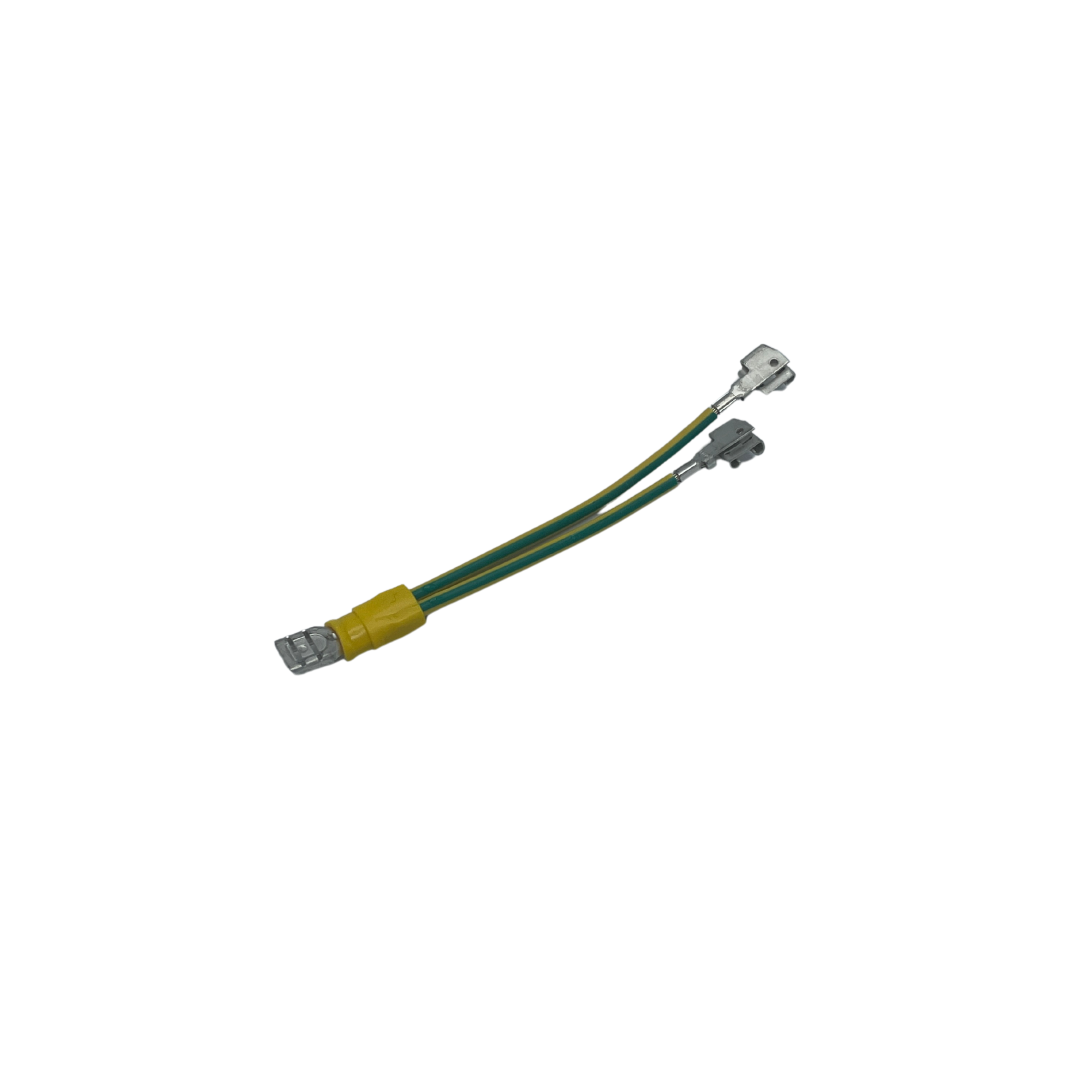

Cable Earth Water inlet valve -J

Cable Earth Water inlet valve -J

Product number: 12226

€11.84*
This cable connects the water inlet valve (ref 12184) to the earthing faston. Needed per device: 1 piece
Cable Foamer 230V -J

Cable Foamer 230V -J

Product number: 12214

€50.43*
This cable tree is located in the front housing and conducts 230 Volts.Needed per device: 1 piece
Cable Foamer 24V -J

Cable Foamer 24V -J

Product number: 12215

€39.07*
This cable tree is located in the front housing and conducts 24 Volts.Needed per device: 1 piece
Cable LED alarm -J

Cable LED alarm -J

Product number: 12229

€7.40*
This LED signals if there is a problem. You will see it lighten up at the bottom of the device when there's an issue to be solved. Needed per device: 1 piece
Cable Limit switch -J

Cable Limit switch -J

Product number: 12221

€15.80*
This cable connects the limit switch (ref 10389) to the motherboard (ref 10424).Needed per device: 1 piece
Cable Motherboard -J

Cable Motherboard -J

Product number: 12218

€11.62*
This cable connects the power supply (ref 11162) to the motherboard (ref 10424).Needed per device: 1 piece
Cable PID-Lvl ctrl -J

Cable PID-Lvl ctrl -J

Product number: 12220

€7.10*
This cable connects the PID (ref 10492) to the level regulator (ref 10491).Needed per device: 1 piece
Cable Relay-Lvl 2 -J

Cable Relay-Lvl 2 -J

Product number: 12222

€7.03*
This cable connects the front relais (ref 12208) - closest to the front of the device - to the level regulator (ref 10491).Needed per device: 1 piece
Cable Relay-Lvl 4 -J

Cable Relay-Lvl 4 -J

Product number: 12223

€7.18*
This cable connects the back relais (ref 12208) - closest to the back of the device - to the level regulator (ref 10491).Needed per device: 1 piece
Cable SSR 3 (blue) -J

Cable SSR 3 (blue) -J

Product number: 12227

€6.22*
This cable connects the solid state relay labeled SSR3 (ref 10632) to the PID (ref 10492). Needed per device: 1 piece
Cable SSR 4 (white) -J

Cable SSR 4 (white) -J

Product number: 12228

€5.03*
This cable connects the solid state relay labeled SSR4 (ref 10632) to the PID (ref 10492).Needed per device: 1 piece
Cable Temp probe -J

Cable Temp probe -J

Product number: 12224

€4.63*
This cable connect the temperature probe (ref 12211) to the PID (ref 10492).Needed per device: 1 piece
Drain valve (Jack)

Drain valve (Jack)

Product number: 12649

€140.79*
This valve drains the boiler of Perfect Moose Jack. Fitting 12240 is pre-mounted on this valve. Needed per device: 1 piece
Drain valve (Jack)

Drain valve (Jack)

Product number: 12207

€130.83*
The drain valve is a mechanical component used for the controlled release of water.
Fitting - 6mm pushfit - G1/4m

Fitting - 6mm pushfit - G1/4m

Product number: 12240

€7.36*
One fitting is connected to the boiler inlet, one is connected to the drain valve inlet. Mounting Torque is 3Nm (max. 3,5Nm !)Needed per device: 2 pieces
Fitting - 8mm pushfit - G1/4m

Fitting - 8mm pushfit - G1/4m

Product number: 12522

€8.70*
This fitting connects the boiler to the steam valve and to the overpressure valve.Mounting torque is 3Nm (max. 3.5Nm !).Needed per device: 2 pieces
Fitting - double stem 6-8mm

Fitting - double stem 6-8mm

Product number: 12233

€9.47*
This fitting with measurements 6 and 8 mm is to be fitted between the cooling water elbow and the drain-T. The stem plays a crucial role in controlling the flow of fluids through a pipeline.Needed per device: 1 piece
